# SX-PCEAX-AP Evaluation        ![NXP Partner Program Horizontal](https://www.silextechnology.com/hs-fs/hubfs/NXP%20Partner%20Program%20Horizontal.jpg?width=147&height=49&name=NXP%20Partner%20Program%20Horizontal.jpg)

**IEEE 802.11ax (Wi-Fi 6) Wireless LAN Access Point Modules**

This User’s Guide provides instructions on SX-PCEAX-AP evaluation with i.MX8MM from NXP.

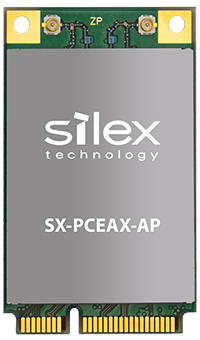

This page covers how to start the evaluation process of the SX-PCEAX-AP, a dual-band Wi-Fi 6 M.2 Radio Module with the NXP I.MX8MM board. We have created an evaluation image using our optimized Silex reference driver for the QCN9072 based SX-PCEAX-AP Wi-Fi Module.

The evaluation image includes our radio driver, AP, and other tools to test the following:

- Basic Wireless functionality
- Advanced Wi-Fi Security
- Data Throughput

![SX-PCEAX-AP_R2 (1)_sml](https://www.silextechnology.com/hubfs/SX-PCEAX-AP_R2%20(1)_sml.png)

#### What you will need

1. Ubuntu 18.04 LTS Development Host PC
2. IEEE 802.11ax Station
3. NXP i.MX8MMini (i.MX 8M Mini LPDDR4 EVKB)
4. M.2 edge to mini-PCIe connector Conversion Board
5. Silex SX-PCEAX-AP 802.11ax wireless module

Download the [SX-PCEAX-AP User's Guide](https://www.silextechnology.com/sx-pceax-ap6-evaluation-guide?hsLang=en-us).
