BR-100AH-Outdoor Bundle

Accessory to Easily Deploy your 802.11ah Infrastructure Network Outdoors

The BR-100AH offers long-range, multi-megabyte connectivity for any IoT device, ensuring both security and reliability. It allows any Ethernet device to connect with other 802.11ah devices over an extended Wi-Fi HaLow network, providing the flexibility to place it anywhere within your facility. The BR-100AH is your all-in-one solution for integrating your device into a 802.11ah (HaLow) network. Now with WPA3-Enterprise support, it brings Wi-Fi HaLow technology to enterprises needing 802.1X authentication for their IT systems.

With this bundle, everything is provided to make the BR-100AH outdoor rated.

All inclusive outdoor kit

This kit includes everything need to turn the AP-100AH or BR-100AH into an outdoor unit including:

  • BR-100AH 802.11ah wireless bridge
  • IP65 outdoor enclosure
  • Internal networking and power cables
  • Waterproof cable glands
  • High-temperature rated power supply
  • Weatherproof antenna



Long-range

HiLow’s use of the 900MHz frequency enables long-range communication that surpasses Wi-Fi capabilities by over 10 times. This frequency also offers exceptional penetrating power, allowing signals to pass through objects that would typically weaken traditional Wi-Fi systems.

Enterprise-level security

Standard 900MHz systems are often unencrypted and vulnerable to cyber-attacks. The AP-100AH, however, supports WPA3-Enterprise (128-bit mode) for 802.1X RADIUS authentication. This allows customers to integrate the existing enterprise network with the 802.11ah (Wi-Fi HaLow) network, covering a broader area. Additionally, with the BR-100AH, any Ethernet device can be seamlessly added to the enterprise network through the AP-100AH.

Standards-based communication

Many 900MHz solutions rely on proprietary communication, locking you into a single vendor. Silex’s 100AH radios, however, utilize the IEEE 802.11ah standard, ensuring compatibility with any products that adhere to this standard, not just those from Silex.

Other Features

Multi-client mode

Multi-client mode has economical advantages since up to 16 devices can be joined in a wireless environment via a single BR-100AH and an optional network hub.

br-100ah-multi-client

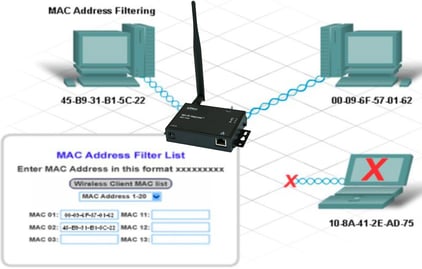

MAC address filtering

The BR-100AH supports MAC address filtering or hardware address filtering. You can secure your home network using MAC addresses, unique identifiers found on every device.When you enable MAC address filtering, only devices that you've enabled can be paired with the bridge and thus the network. It helps secure your devices and your network.

br-100ah-mac-filter2

Embedded web server

The AP-100 has an inbuilt webserver and a configuration page that can be used to configure the access point. It supports both HTTP and HTTPS protocols with TLS security.

Customization for OEMs

We offer customization services leveraging our proprietary technologies and know-how incorporated into AP-100AH. Please get in touch with us if you need re-branding, feature enhancement, firmware customization, or hardware redesigning to meet your unique requirements.





BR-100AH:

Model Number 100AH-OCASE
Water/Dust Proof IP65 "1
Dimensions 78.7 in x 118 in x51.2 in (200mm x 300mm x 130mm) without antenna
Weight 4 lb (1.8 kg)
Storage Environment

Temperature: -20c to 60c
Humidity: 20%-85% (without condensation)

Contents IP 65 Rated enclosure, waterproof antenna, AC adapter fixture, antenna cable (internal), fixtures, outdoor roof, setup guide
Compatible Devices

AP-100AH-US

BR-100AH-US

Standards RoHS
Compatible Device Standards FCC Part15 Subpart B Class A
Compatible AC Adapter (sold separately) 100AH-5V-OP-ACPR-US



*1 Design assurance based on the results of post-design testing

*2 Precautions for installation

It is recommended to install it under shade.

It cannot be used in a submerged environment at all times.

Resin products may crack due to the influence of machine oil, cutting oil, detergent, solvent, screw lock, paint, etc., so please select the one that does not affect the resin after checking the test for each chemical brand.

Software:

Click on the Software Application to download the latest software file for your product.

AMC Manager

Firmware:

Version Release Date Note
3.20 7/31/2024 Version for firmware update through the web configuration page
3.20 7/31/2024 Version for firmware update through AMC Manager


Release Notes

- Fix to interoperable with EX-150AH-US.
