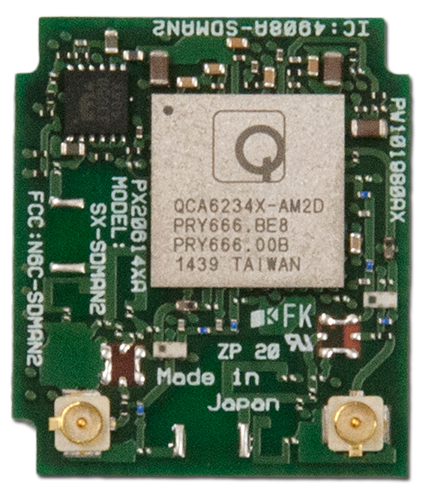

SX-SDMAN2 / SX-SDCAN2 Product Specifications


SX SDMAN2 The product specification document provides detailed hardware specifications for the SX-SDMAN2 and the SX-SDCAN2 Wi-Fi module. The document includes:

  • Hardware System Block Diagram
  • Board Specifications
  • Hardware Specifications
    • General Specifications
    • Environmental Specifications
    • Electrical Specifications
    • Current Consumption Specifications
    • Wireless LAN General Specifications
    •  Wireless LAN Transmitter  Specifications
    •  Wireless LAN Receiver Specifications
    • Bluetooth Specifications
  • Signal Pin Specifications
  •  Interface Specifications
  •  Standards Compliance and Antenna Info
  • Mechanical Specifications
  • Label/Marking Specifications
  • Components Composition List
  • Packing Specifications
  •  Reliability Tests
