EX-150AH-US (US model)

Wi-Fi device range extender by 802.11ah Wi-Fi HaLow

The EX-150AH is the Wi-Fi range extender enabled by Wi-Fi HaLow. You can use the EX-150AH as your Wi-Fi access point and the data from your Wi-Fi device is sent farther through the Wi-Fi HaLow link. With the combination with the AP-150AH, you can easily create the wireless coverage for your Wi-Fi device. The EX-150AH has the USB Type-C as the power supply port so that it can be powered from other USB devices such as a laptop, Android tablet or a battery pack for example.

The Wi-Fi Range Extender by Wi-Fi HaLow

A benefit of 802.11ah is extended range, making it useful for rural communications and offloading cell phone tower traffic. The EX-150AH allows you to connect your Wi-Fi devices to the Wi-Fi HaLow network to extend the wireless communication range 10 times longer than 2.4G/5GHz Wi-Fi. The combination of AP-150AH and EX-150AH eliminates the complexity to extend the wireless infrastructure coverage for your Wi-Fi devices.

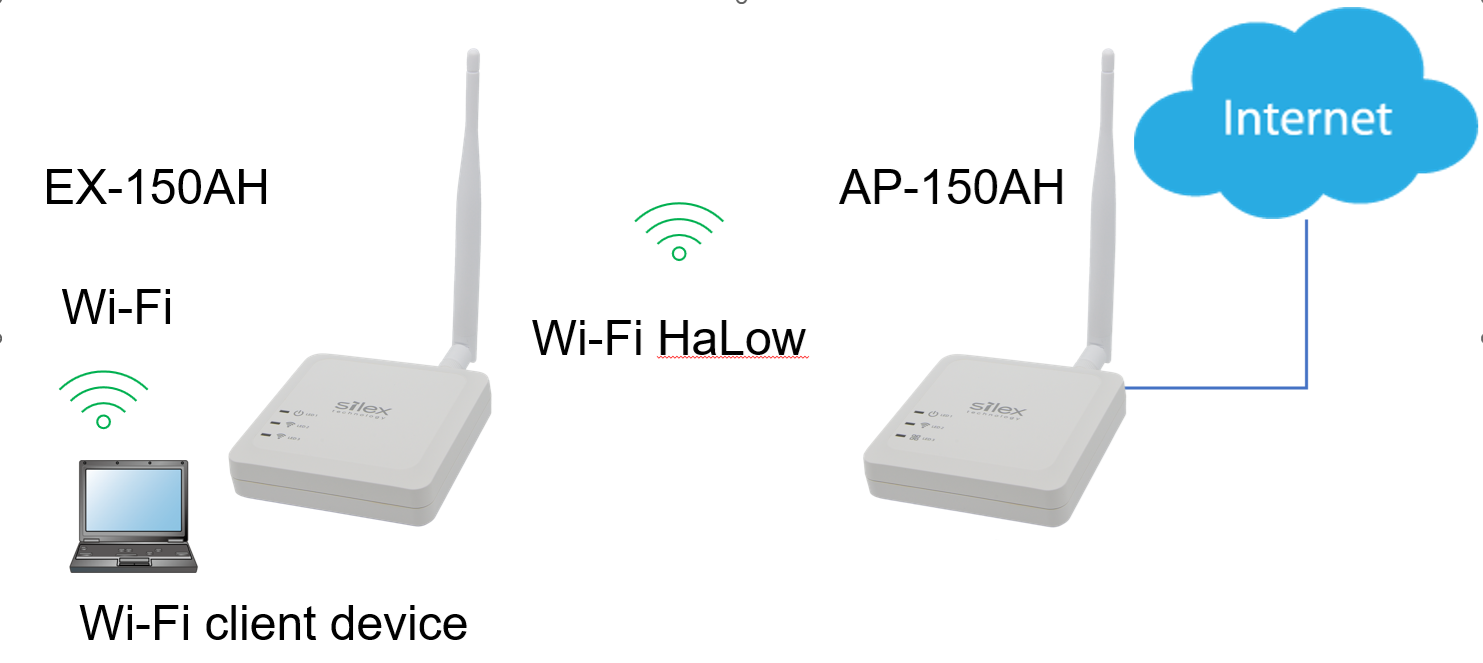

Extension of Wireless Coverage for Wi-Fi Devices

The EX-150AH bridges the data from Wi-Fi device to the Wi-Fi HaLow network under another Wi-Fi HaLow access point. The EX-150AH transfers the data from a farther place where Wi-Fi does not cover.

image-png-Apr-06-2024-05-05-28-3162-AM



High Data Throughput

The EX-150AH-US offers up to 32.5Mbps bit rate for Wi-Fi HaLow interface to enable multiple 1080p encoded video streaming, as well as, the large data transfer for a shorter time.

Simple Extender Installation

The EX-150AH features USB Type-C as the 5V power source so that it can be powered by a Wi-Fi client device with a USB port. The EX-150AH and the AP-150AH will cover the range where several Wi-Fi extenders are traditionally required.

Embedded Web Server

The EX-150AH has an inbuilt web server and a configuration page that can be used to configure the access point.

ex-150ah-web

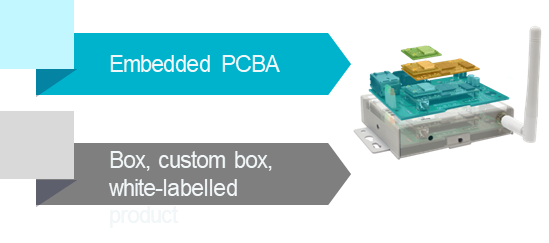

Customization for OEM's

We offer customization services leveraging our proprietary technologies and know-how incorporated into EX-150AH. Please contact us for re-branding, feature enhancement, firmware customization, or hardware redesigning to meet your unique requirements.




Model Number

EX-150AH-US (US model)

Wi-Fi modules

SX-SDMAH-US– Wi-Fi HaLow

SX-SDMAX – Wi-Fi6

Wireless LAN

802.11ah (1x1) external antenna

802.11ax (1x1) internal antenna

Operating frequency

Wi-Fi HaLow: 903Mhz – 927MHz

Wi-Fi 6:

 2.4GHz: ch1 – ch11

 5GHz (20MHz only):

   ch36, 40, 44, 48 (indoor)

   ch149, 153, 157, 161, 165 (outdoor)

Security

Wi-Fi HaLow:

Open/Enhanced Open

WPA3-Personal

Wi-Fi 6:

Open/Enhanced Open

WPA2-Personal/WPA3-Personal

WPA3/2 Transition mode

Encryption: AES

Wi-Fi HaLow MCS

MCS10 (1MHz only)

MCS1 – MCS7 (1/2/4/8MHz)

Wi-Fi 6 MCS

MCS0 – MCS11 (up to 144Mbps)

Ethernet

RJ-45 x 1

10BASE-T/100BASE-TX

Operating environment

Temperature: -20C to 40C

Humidity: 20% - 90% w/o condensation

Storage Environment

Temperature: -20C to 60C

Humidity: 20% - 90% w/o condensation

Power

5V +/- 5% (USB Type-C)

12V/24V +/- 5% (DC)

Power consumption

5V: 6.25W

12V/24V: 9.6W

Dimensions

100mm x 100mm x 25.5mm (excluding antenna)

Weight

150g (including antenna)

EMC Standards

FCC Part15 Subpart B Class B

ICES-0003 Class B

Warranty

5 years

Contents

Body, Antenna

- AC adapter and USB Type-C cable are not included.

Optional accessory

Wall-mount Bracket Type VI

EX-150AH Setup Guide

EX-150AH Manual - Coming in June

Software:

Click on the Software Application to download the latest software file for your product.

AMC Manager

Firmware:

Version Release Date Note
1.00 Coming in July Initial release


Release Notes

-Initial release

Warranty and RMA's

Limited Warranty and RMA (Return Merchandise Authorization) Policy
