SX-ULPAN

Ultra-Low-Power  Wi-Fi Module for IoT  Applications

The SX-ULPAN is an ultra-low-power, Wi-Fi module which supports both single and dual band options. It features SPI or UART as host interfaces providing reliable connectivity for various micro controller-based networking applications.

This low power Wi-Fi module is based on QCA4004 radio from Qualcomm. Our close relationship with Qualcomm and other partners enables us to provide support for our modules that is not available elsewhere.

Ultra-Low-Power Module for IoT

The SX-ULPAN supports both commercial temperature and industrial temperature range. It features SPI or UART as host interfaces. The module’s small form factor, rich features, and ultra-low power make it perfect for many mobile wireless applications and portable battery-operated devices.


Single Band
Commercial Temp
Dual Band
Industrial Temp
Bulk SKU
SX-ULPAN-SB-2401
SX-ULPAN-2401
SX-ULPAN-2404
Sample Pack
SX-ULPAN-SB-2401-SP
SX-ULPAN-2401-SP
SX-ULPAN-2404-SP
Evaluation Kit
SX-ULPAN-2401-SHIELD
SX-ULPAN-2404-SHIELD
Host Interface
SPI
UART

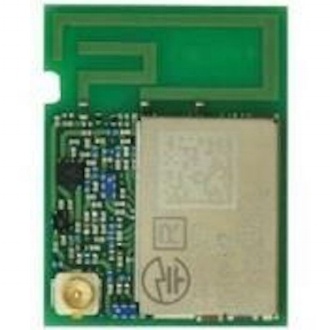

This Ultra-low-power Wi-Fi Module features QCA4004 Radio makes it ideal for Internet of Things (IoT) applications. It has selectable on-board printed antenna and an U.FL connector for an add-on antenna.



  • Single and Dual Band Options
  • i-Temp Support Available
  • Qualcomm QCA4004 Radio
  • Single Stream System(1x1)
  • 20MHz Channel Width
  • Host Interface: SPI/UART
  • Rx Software Selection Diversity
  • WPS, WPA and WPA2 Security
  • Ideal for  IoT applications
  • On-board Antenna &  U.FL Connector Add-on
  • Certified for FCC/IC/CE/TELEC
Product Name
SX-ULPAN-SB-2401
SX-ULPAN-2401
SX-ULPAN-2404
Radio Chip
QCA4004-BL3B
Interfaces
SPI
UART
Radio Specification
802.11 b/g/n
802.11 a/b/g/n
Operating
Temperature
-20 to +70℃
-40 to +85℃
Humidity
Operating 10 to 95 %RH
Storage: 15 to 95 %RH
Security
Open System, WPA/WPA2-PSK
Operating Voltage
3.3V
Current
Consumption
x ≤ 350mA Suspend (SPI) = 5uA
Rx ≤ 100mA Suspend (UART) = 1.2mA
Dimensions
20 x 15 x 2.2 mm
Weight
1.50 +/- 0.1 g



 SX-ULPAN-SB-2401

(SPI)

 SX-ULPAN-2401

(UART)

 SX-ULPAN-2404

(UART)
 Single Band Module Hardware Specifications

Dual Band Module Hardware Specifications
 SPI Module Functional Specifications UART Module Functional Specifications
 SPI Command and API Specification Guide   UART Command Specification Guide


App Notes
Country Code Configuration for Embedded Wireless Modules


Support

Having trouble? Our highly trained support team can help you find solutions for your technical issues.
