Easily Deploy your First 802.11ah Infrastructure Network Overlaying Your Enterprise Network
AP-100AH is the first commercially available access point supporting IEEE’s 802.11ah wireless standard which is a long-range technology where a single access point can give you a range of up to 3 kilometers supporting up to 675 clients. The AP-100AH is all that you need to incorporate 802.11ah into your existing or new infrastructure. The AP-100AH supports communication with a RADIUS server to enable 802.11ah client devices that are capable of 802.1X authentication.
A benefit of 802.11ah is the extended range, making it useful for rural communications and offloading cell phone tower traffic. Among other benefits, AP-100AH is a revolutionary access point combining performance with unequivocal scalability and range (675 simultaneous connections and up to 3 km range). It enables the 802.11ah network integration into your enterprise network which requires 802.1X authentication.
WPA3-enterprise:
The AP-100AH supports WPA3-Enterprise (128-bit mode) for 802.1X RADIUS authentication. The AP-100AH allows customers to overlay the existing enterprise network requiring 802.1x authentication by 802.11ah Wi-Fi HaLow network to cover a wider area. Combined with the use of the BR-100AH, any Ethernet device can be added to the Enterprise network through the AP-100AH.

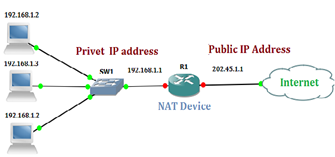

NAT support:
The AP-100AH supports Network Address Translation (NAT) which permits the access point to behave as an agent between the Internet and the private network. It signifies that a unique IP address can be used to symbolize the overall class of network devices like PCs. Thus NAT tenders the double feature of address translation and security for networking systems.
Seamlessly connect to an existing network
The AP-100AH combines all the good parts of Sub-GHz technology and blends it with the familiarity, strength, and technological power of the W-Fi standard. What this means is that you can simply add this to your existing Wi-Fi 802.11a/b/g/n network and add 802.11ah and leverage the benefits of long-range and scalability that this new technology offers.
Embedded web server
The AP-100AH has an inbuilt webserver and a configuration page that can be used to configure the access point. It supports both HTTP and HTTPS protocols with TLS security.
Customization for OEM's
We offer customization services leveraging our proprietary technologies and “know-how” incorporated into AP-100AH. Please contact us for your need for re-branding, feature enhancement, firmware customization, or hardware redesigning to meet your unique requirements.
| Model number | AP-100AH |
| Wired LAN |
Ethernet: RJ-45 Connector x 1 10Base-T / 100Base-TX |
| Wireless Standard |
802.11ah (1x1) |
| Security |
Open, Enhanced Open, WPA3-Personal, WPA3-Enterprise (128-bit mode) Encryption: AES-CCMP |
| Channels |
1 MHz, 2 MHz & 4 MHz |
|
Storage Temperature Humidity |
-20 ~ + 80°C 20 ~ 90% RH |
|
Operating Temperature Humidity |
0 ~ + 40°C 20% ~ 90% RH (non-condensing) |
| Range |
3km |
| Max # of Clients |
675 stations simultaneously |
| Power |
5.0V ± 5% DC Jack (5.5mm x 2.1mm) |
| Regulatory Compliance | FCC, ISED |
| Supported Software | AMC Manager® |
| Dimensions |
126mm x 75mm x 24mm |
| Warranty |
5 years |
Software:
Click on the Software Application to download the latest software file for your product.
Firmware:
| Version | Release Date | Note |
| 3.20 | 7/31/2024 | Version for firmware update through the web configuration page |
| 3.20 | 7/31/2024 | Version for firmware update through AMC Manager |
Release Notes:
- Fix to interoperable with EX-150AH-US.
