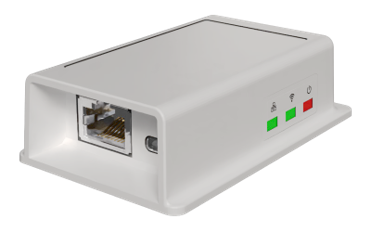

Compact, Durable Design for Medical Environments

The BR-110AX is one of the smallest enterprise-grade Wi-Fi bridges available, measuring just 48 × 77 × 22 mm. Its compact size allows it to be installed inside medical devices or in tight enclosures where space is limited. Designed specifically for clinical environments, it features a disinfectant-resistant and flame-retardant (UL94 V-0) housing that can withstand regular cleaning with hospital-grade disinfectants. With an IP21 rating, it provides protection against incidental fluid exposure, ensuring reliability in the demanding conditions of healthcare facilities.

USB-Powered Simplicity

The BR-110AX draws power directly from the host medical device via a standard USB connection, eliminating the need for an external power adapter. This simplifies installation, reduces cabling complexity, and minimizes clutter around patient care areas. Because it powers on and off in sync with the host device, the bridge operates seamlessly without user intervention. The USB power design also makes it ideal for battery-powered or portable medical devices that require dependable wireless connectivity without adding additional power sources.

Single-Client Mode with IP Intercept

In Single-Client Mode, the BR-110AX connects a single wired medical device to a hospital’s Wi-Fi network while appearing completely transparent to the network. Using IP Intercept technology, the bridge and the connected device share the same IP and MAC address, allowing the network to recognize only the original medical device. This eliminates the need for IT administrators to register new hardware or modify network settings. By preserving the device’s identity, the BR-110AX ensures seamless integration with hospital asset management systems and network security protocols.

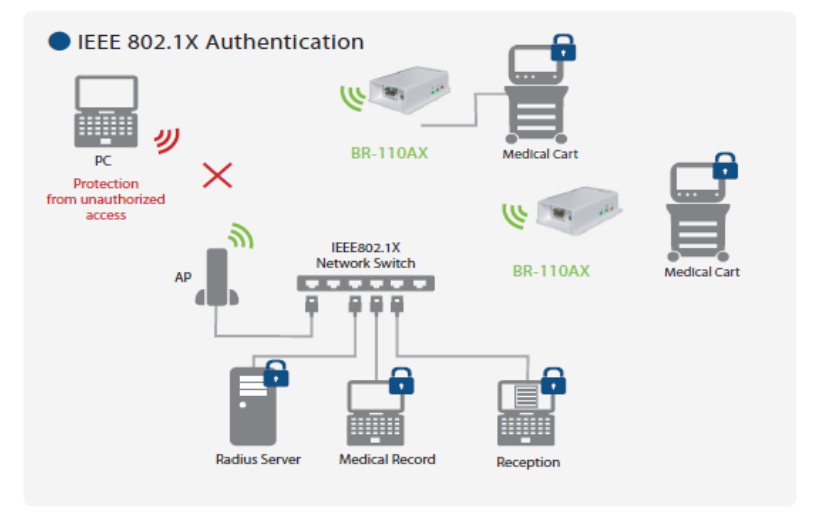

Enterprise-Grade Security

The BR-110AX is engineered to meet the stringent cybersecurity requirements of modern healthcare environments. It supports WPA3 Enterprise (192-bit) encryption and IEEE 802.1X authentication, providing robust protection and ensuring compatibility with existing enterprise Wi-Fi infrastructures. MAC address filtering adds another layer of control, allowing only authorized Ethernet devices to connect. Together, these features protect patient data, maintain network integrity, and ensure compliance with hospital IT policies.

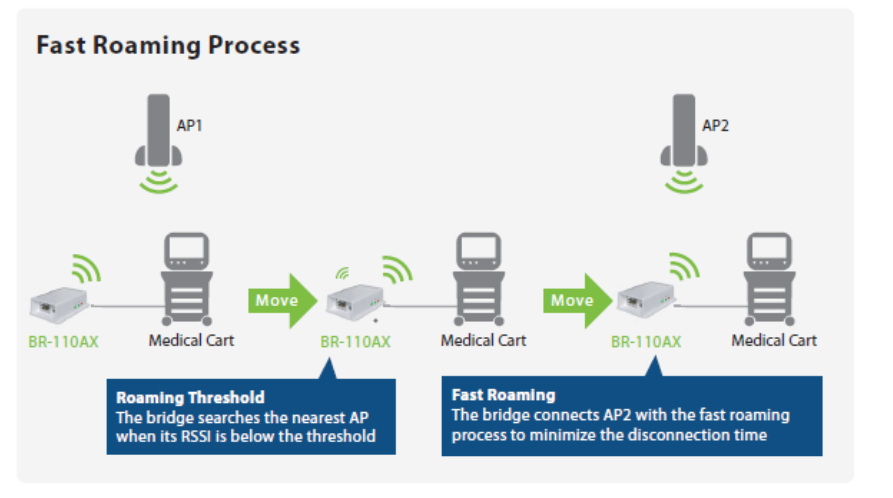

Seamless Mobility with Fast Roaming

To support continuous connectivity for mission-critical medical workflows, the BR-110AX features IEEE 802.11r fast roaming. This enables devices to maintain an uninterrupted wireless connection when moving between hospital access points, ensuring data transmission remains stable and reliable. Whether monitoring patients at the bedside or transporting diagnostic equipment between departments, medical devices equipped with the BR-110AX stay connected without data loss or service interruption. (Requires Wi-Fi access points supporting IEEE 802.11r.)

Access Point Mode for Local Connectivity

When operating in Access Point Mode, the BR-110AX functions as a local Wi-Fi hotspot, creating a secure network for nearby wireless devices. This capability allows medical staff to connect smartphones, tablets, or other devices directly to the bridge without requiring access to the main hospital network. It simplifies local configuration, device provisioning, and firmware updates, making it especially useful during setup or maintenance operations within clinical environments.

Centralized Management with AMC Manager®

The BR-110AX can be easily configured, monitored, and managed using Silex’s AMC Manager® software. This centralized management tool enables IT administrators to remotely monitor connection status, perform firmware updates, and adjust device settings without needing physical access. AMC Manager® also provides key performance metrics, such as signal strength and channel utilization, allowing for proactive maintenance and reduced system downtime. Through centralized control, hospitals can simplify network management, enhance reliability, and lower operational costs.

Reliable Wireless Connectivity for Medical Devices

Combining enterprise-grade wireless performance with medical-grade reliability, the BR-110AX provides the secure, stable, and transparent connectivity required in modern healthcare environments. It empowers medical device manufacturers and hospital IT teams to modernize existing equipment with confidence, creating a seamless bridge between wired reliability and wireless mobility.
