EP-200N: NXP i.MX95 Powered AMC Edge System-on-Module (SoM)

The EP-200N is a high-performance AMC Edge SoM powered by the NXP i.MX95 SoC, specifically engineered for secure and safe edge computing. As a pre-validated subsystem, it streamlines the development of connected devices for healthcare and industrial automation.

This compact, surface-mount SoM exposes the full potential of the i.MX95, providing integrated Ethernet and CAN-FD interfaces. For the industry leading reliable wireless connectivity, the EP-200N offers seamless integration with the SX-SDMAX6E Wi-Fi 6E SDIO module, the industry’s first solution powered by NXP IW623, ensuring reliable, low-latency connections.

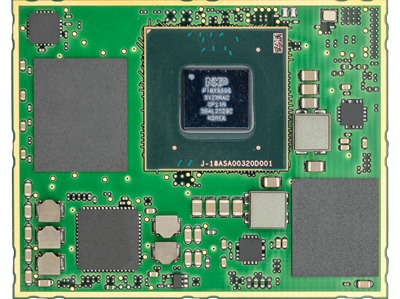

EP-200N-01-400x300

Multi-Core Performance & AI Acceleration

The EP-200N features a power-efficient Hexa-core ARM Cortex-A55 architecture, integrating a dedicated GPU, VPU, and ISP. For machine learning at the edge, the integrated 2-TOPS NPU (8 eTOP effective) AI engine enables high-performance vision and sensor processing for power-optimized devices.

Flexible, pre-validated Wi-Fi connectivity options

The EP-200N Yocto Linux package includes Silex's SX-SDMAX6E driver, which is fully validated to achieve reliable Wi-Fi connectivity. It can also support Wi-Fi 7 connectivity through its PCI express interface. Its pre-validated Wi-Fi integration streamlines development, reducing time to market.

Heterogeneous computing

Leverage a sophisticated heterogeneous architecture featuring Cortex-A55, Cortex-M7, and Cortex-M33 cores. The dedicated Cortex-M domains handle real-time operations and safety-critical tasks, ensuring deterministic performance for time-sensitive industrial and healthcare applications.

Pre-Validated Wi-Fi 6E & Wi-Fi 7 Connectivity

Accelerate your RF development with the EP-200N Yocto Linux package.

Integrated Support: Includes the fully validated SX-SDMAX6E driver for reliable Wi-Fi 6E connectivity.

Future-Proofing: Supports Wi-Fi 7 integration via the high-speed PCI Express (PCIe) interface. This pre-validated stack reduces integration risks and significantly shortens your time-to-market.

Simplified Onboarding & NXP Gold Partner Support

As an NXP Gold Partner, Silex provides more than just hardware. We offer a comprehensive ecosystem of support, including:

Detailed user guides and technical collateral.

Hands-on engineering assistance for seamless integration.

Support from initial EVK evaluation through to full-scale production.


Product Name

EP-200N
Processors

6x Hexa-core Arm Cortex-A55 CPU
ARM Cortex-M7
ARM Cortex-M33
GPU

 Arm® Mali™ 3D GPU + 2D GPU
NPU

 NXP eIQ® Neutron Neural Processing Unit (2.3 TOPS)
ISP

 NXP ISP with RGB-IR support
Display Serial Interface

1x 4-lane MIPI DSI (Exclusive use with on MIPI CSI)           2x LVDS
Camera Serial Interface

2x 4-lane MIPI CSI (Exclusive use with one MIPI DSI)
LVDS

Up to 1080p60 (2x 4-lane or 1x 8-lane)

Interfaces

2x Gigabit Ethernet  1x 10G Ethernet
5x CAN-FD
2x PCIe 3.0 (1-lane)
1x USB 3.0
1x USB 2.0
2x 4-bit SDIO
GPIOs (I2C, I2S, SPI, UART)
Video Codec 4K60P H.265/H.264 decode or encode (4K30P H.265/H.264 simultaneous encode & decode)
Camera support Up to 1x4Kp60fps, 2x4Kp30, 4x1080p60, or 8x1080p30 cameras with MIPI virtual channels
Memory 32GB eMMC
8GB LPDDR5 (32-bit)
Operating Temperature -40 to 85 degrees C
Size 50mm x 40mm
Package LGA
