Easily Connect your Ethernet Devices to an 802.11ah Enterprise Network
BR-100AH is the first commercially available IEEE’s 802.11ah wireless enterprise bridge. It enables any Ethernet device to communicate with other 802.11ah devices over a long-range Wi-Fi HaLow network, giving you the freedom to place it anywhere in your facility. BR-100AH is all that you need to incorporate your device into your 802.11ah (HaLow) network. The BR-100AH now supports WPA3-Enterprise to make Wi-Fi HaLow technology available for enterprises that require 802.1X authentication for their IT systems.
The BR-100AH allows any Ethernet-enabled device to join a secure long-range 802.11ah WLAN network with over megabit per second data throughput. It is software transparent meaning no changes to drivers, management tools, or applications are needed. The BR-100AH operates in Multi-client mode. It can connect multiple devices, which are connected to a wired LAN port using HUB, to a wireless LAN environment.
WPA3-enterprise:
The BR-100AH supports WPA3-Enterprise (128-bit mode) for 802.1X RADIUS authentication. Any Ethernet device can be added to the Enterprise network that requires 802.1x authentication through the AP-100AH which also supports communication with a RADIUS server.
Multi-client mode:
Multi-client mode has economical advantages since up to 16 devices can be joined in a wireless environment via a single BR-100AH and an optional network hub.

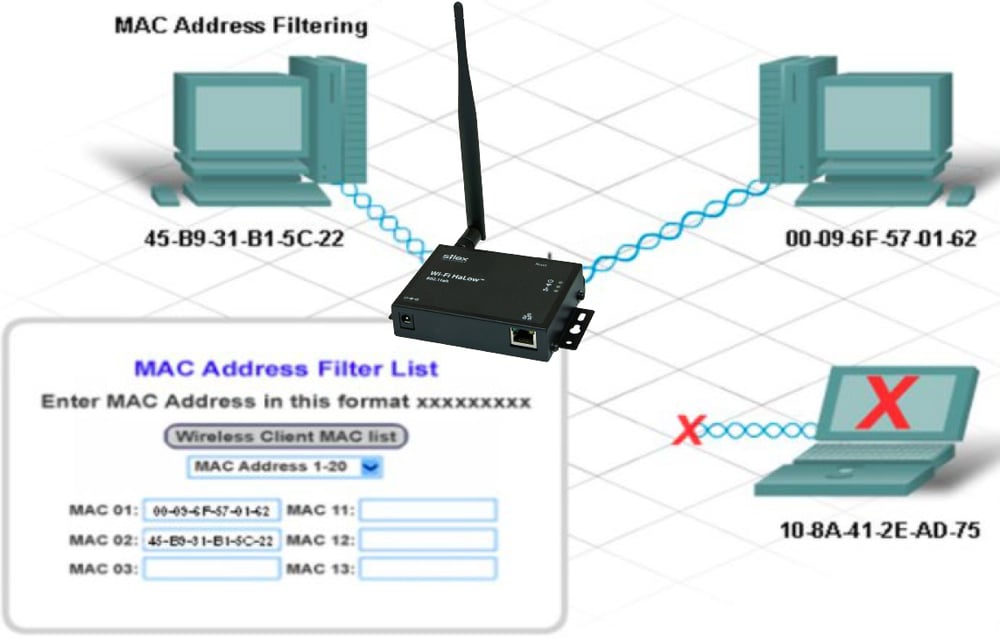

MAC address filtering
The BR-100AH supports MAC address filtering or hardware address filtering. You can secure your home network using MAC addresses, unique identifiers found on every device. When you enable MAC address filtering, only devices that you've enabled can be paired with the bridge and thus the network. It helps secure your devices and your network.
Customization for OEM's
We offer customization services leveraging our proprietary technologies and “know-how” incorporated into BR-100AH. Please contact us for your need for re-branding, feature enhancement, firmware customization, or hardware redesigning to meet your unique requirements.
Model Number | BR-100AH |
Wired LAN |
Ethernet: RJ-45 Connector x 1 10Base-T / 100Base-TX |
Wireless Standard |
802.11ah (1x1) |
Security |
Open, Enhanced Open, WPA3-Personal, WPA3-Enterprise (128-bit mode) Encryption: AES-CCMP |
Channels |
1 MHz, 2 MHz & 4 MHz |
Storage Temperature Humidity |
-20 ~ + 80°C 20 ~ 90% RH |
Operating Temperature Humidity |
0 ~ + 40°C 20% ~ 90% RH (non-condensing) |
Range |
3km |
Max # of Clients |
16 clients |
Power |
5.0V ± 5% DC Jack (5.5mm x 2.1mm) |
Regulatory Compliance | FCC, ISED |
Supported Software | AMC Manager® |
Dimensions |
126mm x 75mm x 24mm |
Warranty |
5 years |
Software:
Click on the Software Application to download the latest software file for your product.
Firmware:
Version | Release Date | Note |
3.20 | 7/31/2024 | Version for firmware update through the web configuration page |
3.20 | 7/31/2024 | Version for firmware update through AMC Manager |
Release Notes:
- Fix to interoperable with AP-150AH-US
