SX-59HLS

802.11n System on Module with Enterprise Security for IoT Applications

The SX-59HLS is an ultra-low power Hosted Dual Band 1x1 802.11a/b/g/n Internet-of-Things (IoT) wireless module based on the Qualcomm QCA4012-2 System-on-Chip (SoC). The SX-59HLS is a first in its class to provide enterprise security for today’s high-performing networks.

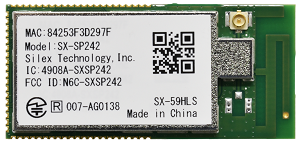

SX-59HLS_181114_webpage

Enterprise security for IoT applications

The SX-59HLS is a first-in-class that provides enterprise security for today’s high-performing networks. With support for TLS v1.2, WPA2, and the most common EAP types (PEAP, TLS, TTLS, FAST), the module provides an easy to use AT style interface for the transferring and storage of certificates, configuring of network parameters and installation of user credentials.

It integrates a QCA4012-2 SoC with 16-Mbit SPI Flash, 40 MHz TCXO, single Balun IC, and a 2.4/5 GHz printed PCB antenna. It is ideal for hosted applications, as 800 Kbyte of on-chip RAM is available for customer applications and third-party software thus making an external MCU optional.
SX-59HLS delivers Wi-Fi connectivity, integrated intelligence, security, and advanced features for many IoT systems including medical devices, remote control, appliances, home & factory automation etc.
  • Dual Band 802.11n
  • Ultra-Low-Power
  • Small Compact Size
  • Enterprise Security
  • On-chip TCP/IP Stack
  • No Driver Porting
  • Enterprise Security
  • Quick Time to Market
  • WPA2 KRACK Update
  • Modular Certified
  • RED 2.1.1 Compliant
Product Name  SX-59HLS
Radio Chipset  QCA4012-2 (Qualcomm)
Memory  Integrated 16-Mbit SPI Flash,
 800 Kbyte of on-chip RAM memory
Radio Specifications  802.11a/b/g/n (1x1)
Supported Interface  High Speed UART
Security  WPA/WPA2
 802.11x (LEAP, PEAP, TLS, TTLS, FAST)
WPS 2.0  WPS - Push Button Configuration
 WPS- PIN Code Method
Operating Voltage  3.3V +/-5%
Operating Temperature  0 to +70 degrees C
Dimensions  43.00 x 20.00 x 2.5 mm (L x W x H)
Modular Certifications  FCC / IC / CE / MIC

SX-59HLS Hardware Specifications
SX-59HLS Functional Specifications
SX-59HLS Silex AT Command Guide
SX-59HLS Evaluation Manual

App Notes
Country Code Configuration for Embedded Wireless Modules







Firmware:

SX-59HLS Version 1.10

Release Notes
