Wi-Fi 7 plus Bluetooth® Combo Module

SX-PCEBE

802.11be Tri-band Connectivity for Industrial and Medical Applications

The SX-PCEBE is the industry’s first PCIe Wi-Fi 7 plus Bluetooth (BT) combination module designed to meet high-performance connectivity demands for mission-critical applications. It is powered by Qualcomm’s QCC2076 chipset which is a highly integrated System-On-Chip (SoC) supporting Wi-Fi 7 and Bluetooth (BT) 5.3. It supports simultaneous operation on 2.4GHz and 5GHz, or 6GHz, also known as Dual Band Simultaneous (DBS).

The latest Wi-Fi® technology will take your network connectivity to the next level!

The SX-PCEBE is a rugged, industrial-grade embedded wireless LAN module powered by the Qualcomm QCC2076 chipset. It delivers reliable, high-speed communication using the latest Wi-Fi 7 standard (IEEE 802.11be).

This module ensures seamless, stable wireless connectivity for a wide range of applications, including industrial and medical data communication, as well as video and image transmission for machine vision, remote monitoring cameras, and diagnostic imaging equipment. Additionally, the SX-PCEBE supports the 6GHz frequency band, offering enhanced performance with minimal radio interference, ensuring reliable communication in even
the most demanding environments.



SX-PCEBE is powered by the QCA2076 chipset that supports Wi-Fi 7 and tri-band frequencies. It is ideal for embedded applications like medical devices, transportation, and AI data-driven and streaming products that need to pass large amounts of data over a network relatively quickly.

Key Features and Benefits

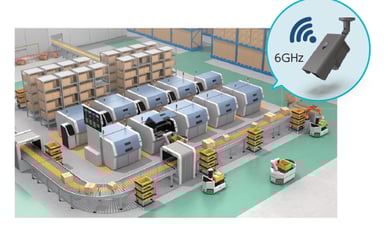

Stable communication with 6GHz band support

The 6GHz band offers numerous channels and is free from noise in 2.4GHz and 5GHz, ensuring stable communication for critical data in industrial and medical applications.

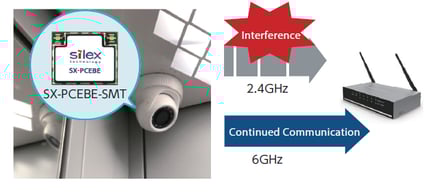

Multi Link Operation (MLO)

Wi-Fi 7’s multi-link operation allows the device to connect to all three frequencies (2.4, 5, and 6 GHz) at the same time. This feature is a game-changer as it enables communication redundancy by simultaneously using multiple frequency bands. If interference disrupts one band, communication continues on the other, enhancing reliability for devices like cameras that transmit continuous data.

Wi-Fi 7 introduces preamble puncturing to avoid channels with interference, resulting in an ability to use wider channels in the face of interference.

Standard Form Factors for Seamless Integration

The SX-PCEBE comes in multiple form factors for diverse needs. The surface mount option, the M.2 LGA type 1620, offers the smallest footprint ideal for medical equipment with limited space, while the M.2 PCI Express card factor is suitable to migrate your legacy PCIe radios to an 802.11 solution. The M.2 card option also allows customers to evaluate the radio using any platform that has an M.2 slot.

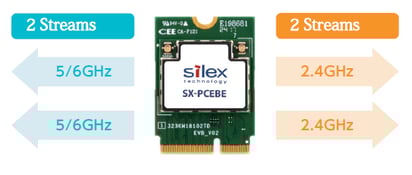

Dual Band Simultaneous Operation (DBS)

This product enables simultaneous communication on 2.4GHz, 5GHz, or 6GHz frequencies, with two streams per band for high-speed, concurrent data transfer.



SKU's

SX-PCEBE-SMT (M.2 LGA Type 1620)
SX-PCEBE-M2 (M.2 Card Type 2230-S3-A-E)

Chipset QCC2076
Host Interface WLAN : PCIe 3.0
Bluetooth: UART  or USB
WLAN Specifications IEEE 802.11a/b/g/n/ac/ax/be (2x2)
Bluetooth Specifications Bluetooth v5.3 (Bluetooth Low (BLE), BLE long range)
Antenna  MHF4 Connectors:2
Operating Voltage 3.3V (VIO: 1.8V)
Operating Environment Temperature: -40 ~ 85 ℃
Storage Environment Temperature: +55 ~ 150 ℃
Dimensions SX-PCEBE-SMT: 16.0mm x 20.0mm
SX-PCEBE-M2: 22.0mm x 30.0mm
Target Tx Power

2.4 GHz: 26 dBm
5 GHz: 21 dBm

6 GHz:  23 dBm

Modular Certifications USA, Canada, Europe, Japan
Recommended Antennas TE Connectivity (2118907-8)
Wi-Fi Driver Support

OS Support

- Linux

Basic Functionality
- Station
- Access Point
- WPA3
- IEEE802.1X (TLS, TTLS, PEAP)
- WPS2.0 *
- Wi-Fi Direct *

* To use it, you need to obtain Wi-Fi Alliance certification separately.







SX-PCEBE Hardware Specifications: Request from Sales

Functional Specifications: Request from Sales - NDA required
