The Next-Generation SX-SDMAC Plus Delivers Smaller Size, Lower Cost, and Higher Performance

SX-SDMAC-Plus.pngSilex Technology America, Inc., a global leader in wired and wireless networking solutions, today announced the newest member of the SX-SDMAC family, the SX-SDMAC Plus wireless module. This dual-band IEEE 802.11a/b/g/n/ac WLAN plus Bluetooth 4.2 SDIO module fulfills a strategic role in Silex Technology’s embedded wireless product portfolio, opening new opportunities and markets.

Building upon the SX-SDPAC and SX-SDMAC series, the SX-SDMAC Plus takes the best of both product categories with the smallest form factor in the SX-SDMAC module family, extended temperature range, and product longevity. The new design also has higher transmit output power than the SX-SDMAC, thus increasing the Wi-Fi network range for increased coverage and performance.

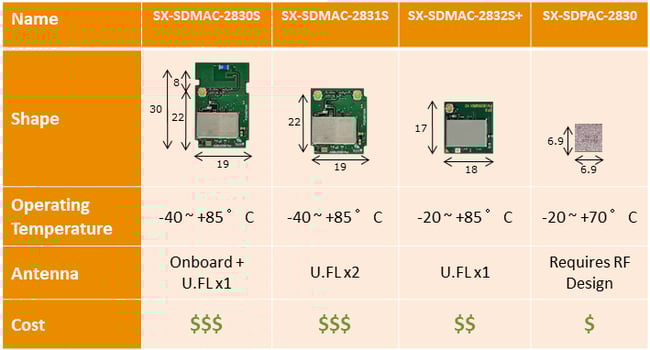

 SDMAC SKUS_rev2.png

SX-SDMAC Plus Features:

  • Smallest form factor in the SX-SDMAC module family
  • Based on the QCA9377-3 SoC
  • IEEE 802.11a/b/g/n/ac Wave 2 MU-MIMO Client
  • SDIO 3.0 WLAN host interface
  • Bluetooth 4.2 BR/EDR/LE Smart Ready
  • Enhanced transmit output power for increased Wi-Fi range and performance
  • Link rate of up to 433 Mbps
  • Support for enterprise security, seamless roaming, and CCX
  • Fine-tuned calibration per module
  • FCC/IC/CE/MIC modular certification
  • Extended temperature range of -20 to +90°C
  • Available in surface mount and SDIO card form factors
  • Driver support for Silex AMC driver, Code Aurora, ath10k mainline, Windows, Android, and RTOS


Download the detailed product specifications to learn more about this latest module.
